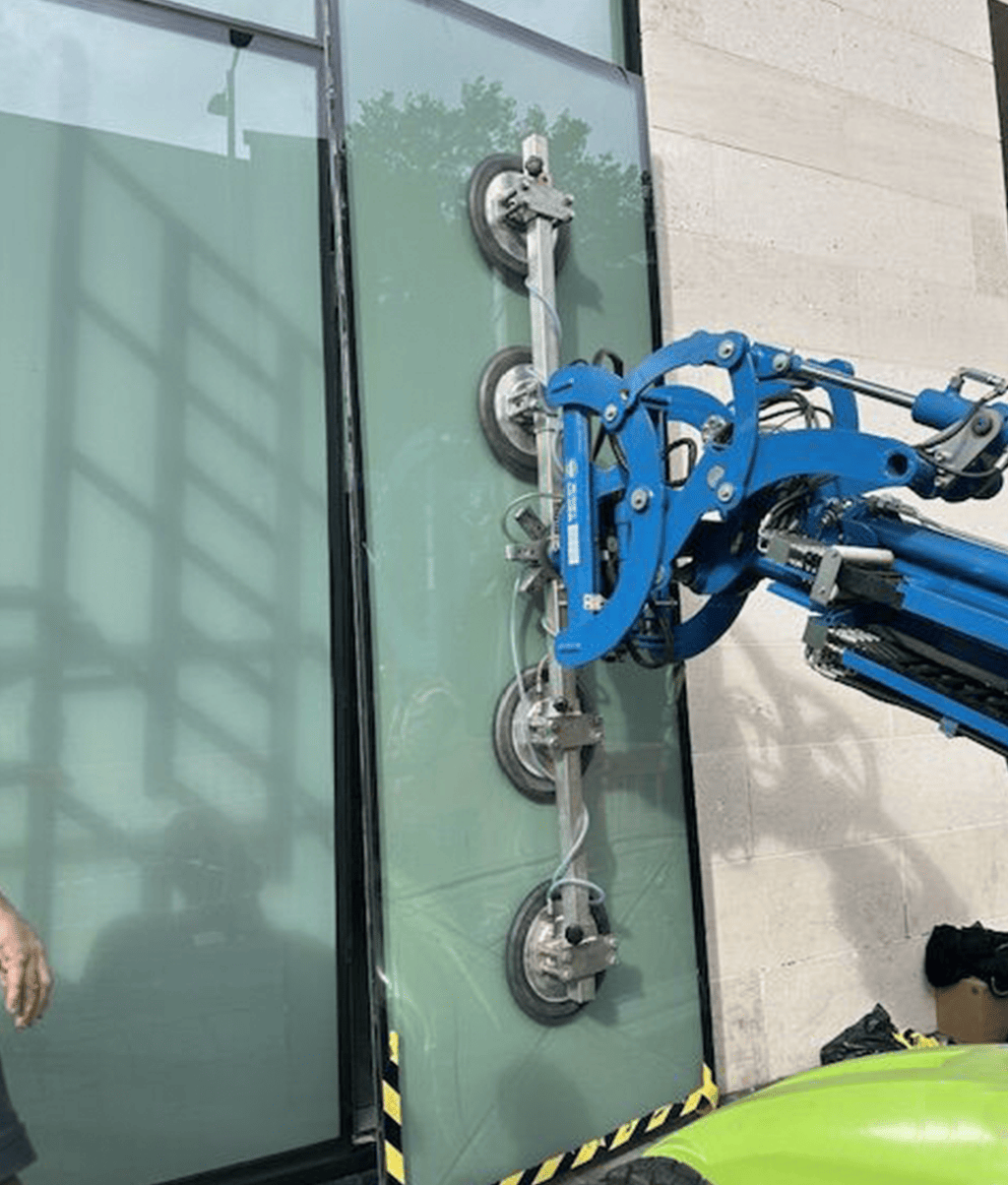

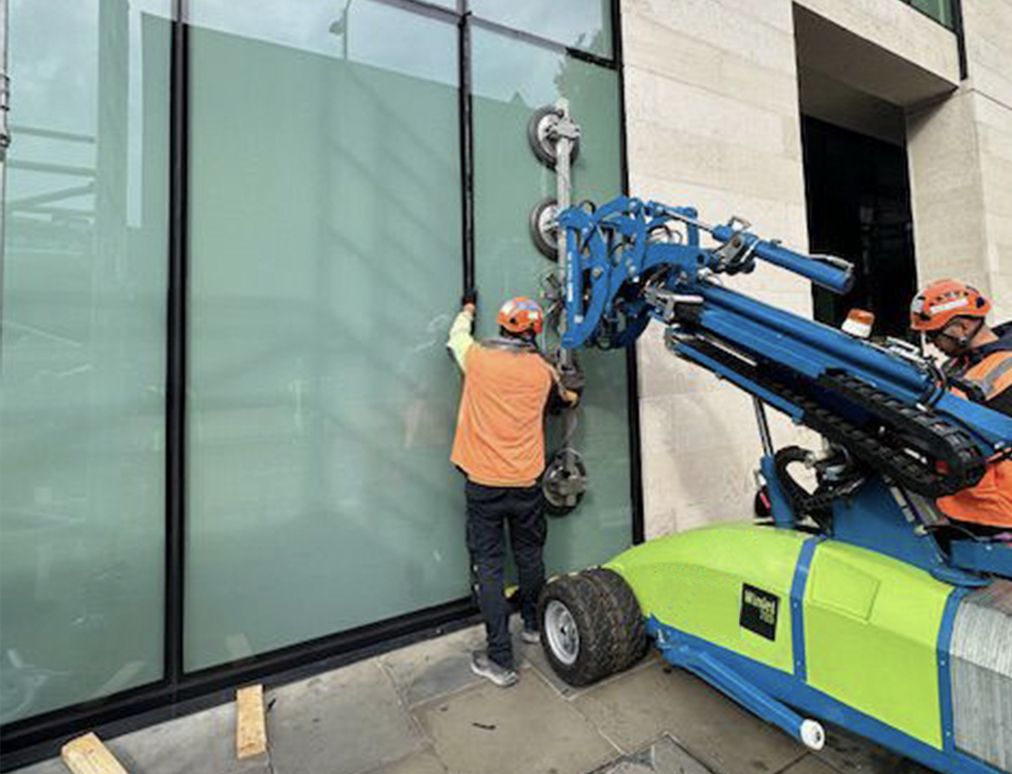

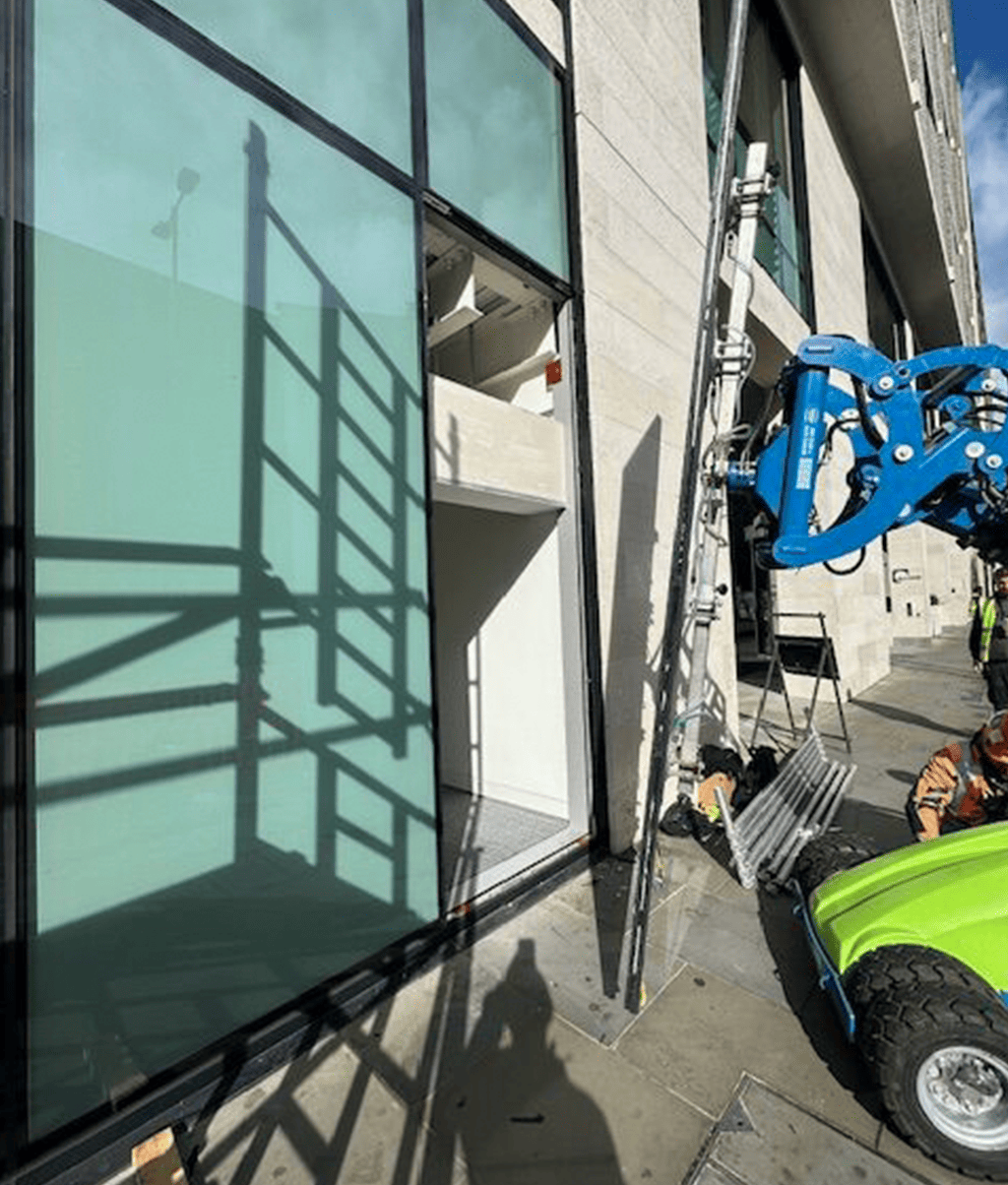

Evander Commercial Glazing recently used the Winlet 785 glazing robot on site, installing glass replacement in central London, installing a toggle DGU back-painted panel weighing in at 277 kg
Evander Commercial Glazing recently used the Winlet 785 glazing robot on site, installing glass replacement in central London, installing a toggle DGU back-painted panel weighing in at 277 kg
Trusted by professional glazing teams, the Winlet 785 enabled Evander’s crew to lift and manoeuvre the large glass panel safely and precisely, protecting both the workforce and the materials. Its advanced hydraulics and compact frame made it possible to handle the panel in a challenging setting, working seamlessly as part of a careful lifting plan that included full traffic management with pavement closures and crane licence. The result? A safe, efficient installation with no compromise on quality.
How Winlet 785 Helped Deliver Results
- Heavy loads, expertly handled: Lifting capacity up to 785kg means even substantial panels are easily supported.
- Precision placement: Gyroscopic stabilisation and hydraulic controls give fine fingertip adjustment for tight, complex fits.
- Safety First: Reduces manual handling and the risk of site injuries, even more important in built-up and high-traffic environments.
- Compact & adaptable: At just 880mm wide, the Winlet 785 is at home in restricted spaces.
Winlet 785 – Specifications
| Feature | Value |
|---|---|
| Max Lifting Capacity | 785 kg |
| Lift Height | 3,970 mm |
| Max Extension | 2,500 mm |
| Extension Capacity | 100 kg |
| Side Lift Capacity | 275 kg |
| Tilt / Rotation | 180° / 180° |
| Machine Width | 880 mm |
| Total Machine Weight | 1,422 kg |
| Suction Cups (Glass) | 4 @ 410 mm |
| Power Source | Battery |
